關于 5G,我們還有很多不知道的地方。但是我們知道它速度快,它將以更高的分辨率,增強/虛擬現實和增強的游戲體驗將現有的智能手機提升到一個新的水平。與 LPDDR4 相比,LPDDR5 DRAM 顯著提高了數據傳輸速度和電源效率,滿足了 5G 規范。更高的數據傳輸速率和更快的信號速度意味著更加復雜的設計,這些設計突破了信號完整性的界限,并需要進行更高的性能測量以進行合規性、調試和驗證。
泰克 LPDDR5 發射機解決方案是一種自動化的系統級測試應用,可讓您快速、有效和可靠地驗證和調試 LPDDR5 設計,以滿足 JEDEC 定義的 50 多種電氣和時序測量要求。
雖然 DRAM 驗證是產品開發中確保設計質量必不可少的步驟,但它也非常耗時且麻煩。應對這一挑戰的一種方法是盡可能減少手動測試。我們的 LPDDR5 發射機解決方案可以助您自動完成 LPDDR5 信號完整性測試,并將總測試時間縮短一半。這減少了總體反饋和測試周期,并可以幫助公司更快地將產品推向市場。
泰克的 LPDDR5 發射機解決方案將控制權歸還給用戶。用戶自定義采集模式可讓您通過自定義示波器設置(例如采樣率、記錄長度、帶寬等)來運行 LPDDR5 JEDEC 一致性測量。
讀/寫突發分離一直是存儲器驗證工程師的主要問題。通常,在系統級別上,無法控制 DDR 總線上的數據流量。LPDDR5 發射機解決方案采用新的改進突發分離算法,不僅可以同時進行讀/寫突發檢測,而且還可以縮短測試時間和提高準確性。
在反嵌 LPDDR5 設計時,驗證 S 參數通常是主要的考慮因素。借助改進的無源檢查、端口分配和繪圖功能,串行數據鏈路分析 (SDLA) 不僅增強了 S 參數文件的驗證能力,而且還提高了靈活性,節省了時間并增加了對反嵌過程的信心。其他調試軟件工具需要您完成整個過程才能找到結果。泰克的 LPDDR5 發射機解決方案可幫助您在早期階段發現問題,從而提高調試效率并優化設計。SDLA 功能也可用于 DFE 分析。
有關更多信息,請?jiān)诖瞬榭次覀兊?SDLA 應用程序注釋。
LPDDR5 DRAM 的其中一種省電功能是在 1600 Mbps 或更低的數據速率運行時將三個差分信號 CK、WCK 和 RDQS 更改為單端信號。根據使用情況,還需要對單端模式以及默認的差分模式進行全面測試。帶有新同軸探頭的 P7700 系列 TriMode 探頭端部使您可以通過一種探頭設置測量差分和單端信號,而無需拆焊探討。這簡化了用于測試 LPDDR5 DRAM 單端模式的探測設置。
The DDR (Dual Data Rate) is a dominant and fast-growing memory technology. It offers high data transfer rates required for virtually computing applications, from consumer products to the most powerful servers. The high speed of these signals requires high-performance measurement tools. The Tektronix TekExpress DDR Tx is an automated test application used to validate and debug the LPDDR5 designs of the DUT as per the JEDEC specifications. The solution enables you to achieve new levels of productivity, efficiency, and measurement reliability.
UDA: The TekExpress DDR Tx ‘LPDDR5’ Transmitter Solution puts control back where it should be, with the user. User defined acquisition mode allows you to run LPDDR5 JEDEC compliance measurements by customizing scope settings like sample rate, record length, bandwidth, and more
Tektronix provides the most comprehensive solution to serve the needs of the engineers designing DDR silicon for server, computer, graphics systems, mobile, embedded systems, and for those who are validating the physical-layer compliance of DDR Memory Compliance Test Specification.
The Tektronix option LPDDR5SYS (TekExpress DDR Tx) includes compliance and debug solution for the following:
The Tektronix option LPDDR5SYS is compatible with the following Tektronix oscilloscope models:
The above-mentioned Tektronix oscilloscopes are designed to meet the challenges of the next generation memory standards and provide the industry’s leading vertical noise performance with the highest number of effective bits (ENOB) and flattest frequency response for oscilloscopes in their class.
The Tektronix TekExpress DDR Tx solution reduces the effort and accelerates the compliance testing for DDR systems and devices with several unique and innovative capabilities.

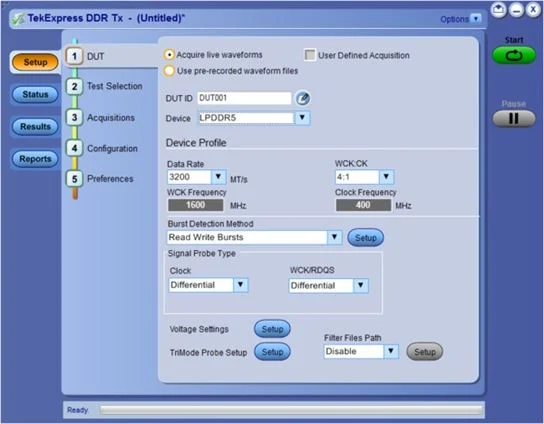

The TekExpress DDR Tx application provides a simple, step-by-step, and easy-to-use interface to speed up the testing process. User can select the memory technology of interest in Device, Data Rate, Burst Detection Method, select the probing configuration used for Clock, and strobe in the Setup DUT panel. Perform the test selection in the next step as per the measurement group (Clock, Command Address, Data Strobe, and Data for both Read and Write traffic (or bursts)) and individual measurements within the group provide different methods of Burst detection.
The TekExpress DDR Tx application comes with a unique feature to select or deselect the signal. Once the signal is selected in the acquisition panel, the user can select the signal source connected to the oscilloscope.

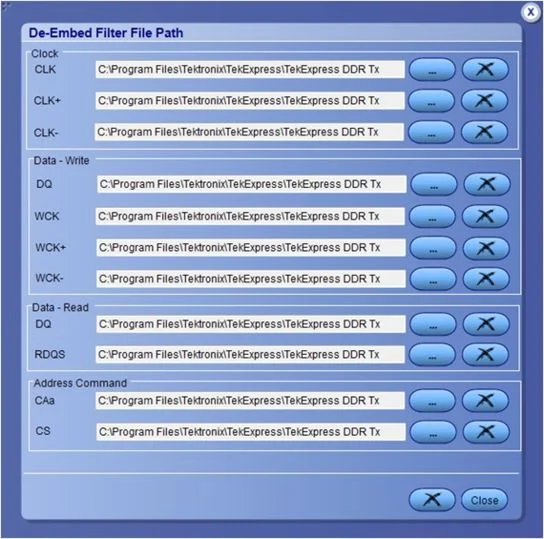

Easily de-embed the interposer and the probe effects by applying suitable de-embed filters within the LPDDR5 standard.
The option LPDDR5SYS adds a long list of JEDEC specific measurements for LPDDR5 memory standards. The TekExpress DDR Tx application covers Electrical measurements, Timing measurements, and Eye Diagram measurements as per the JEDEC standards.

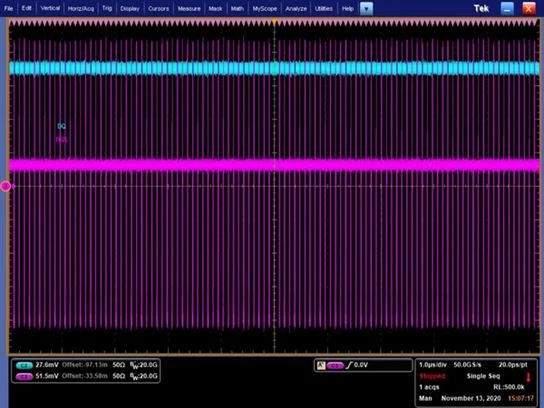

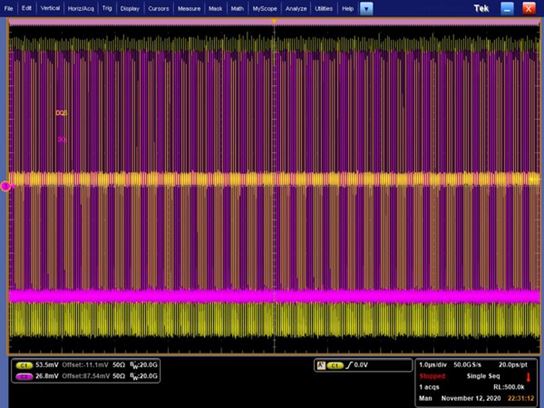

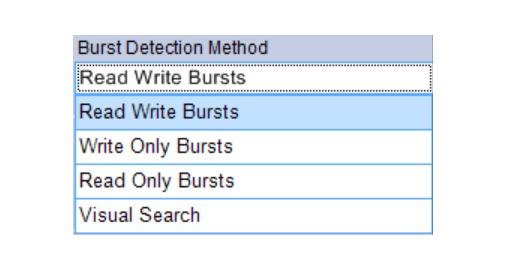

The TekExpress DDR Tx provides different ways to detect the burst cycles that are used to perform measurements:
The TekExpress DDR Tx test selection panel allows the user to select the various measurements supported by the application.

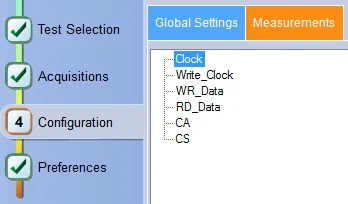

Ease of use measurement configuration to configure measurements by group instead of running through all the 50+ measurements.
The measurement configurations and JEDEC pass/fail limits are automatically applied for the selected measurements based on the memory specification and the selected speed grade. The results report includes DDR measurements of statistical data, measurement plots, and the screenshot of the waveforms with the cursors. Hyperlinks within the report allow you to navigate between the sections.

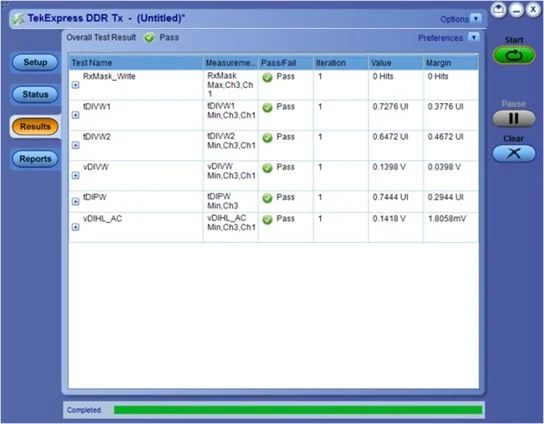

When test execution is complete, the application automatically opens the Results panel and displays the summary of test results.
The TekExpress DDR Tx application provides a comprehensive set of JEDEC timing and electrical measurements for the LPDDR5 standard. Also, it provides access to the DPOJET Advanced Jitter and Timing analysis engine that allows flexibility to reconfigure the existing measurements or to perform new measurements that are not defined by the JEDEC specification using new user-specified test limits.
The Tektronix Pinpoint? trigger system provides the most comprehensive high-performance trigger system in the industry. The Pinpoint trigger system encompasses threshold and timing related triggers, Dual A and B Event Triggering, Logic Qualification, Window Triggering, and Reset Triggering.
The Advanced Search and Mark feature in the Tektronix MSO/ DPO5000, DPO7000, and MSO/DPO70000 Series oscilloscopes find unique events in the waveforms. It scans acquired waveform data for multiple occurrences of an event and marks each occurrence.
The Search and Mark feature has a close relationship with the Pinpoint trigger system since they both can be used to discriminate signal characteristics. Search and Mark includes signal-shape discrimination features of the Pinpoint trigger system and extends them across live channels, stored data, and math waveforms.

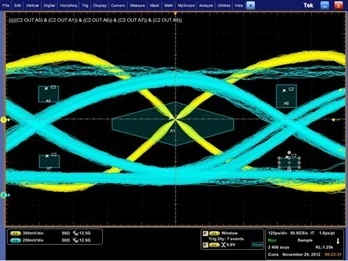

The Visual Trigger makes the identification of the desired waveform events quick and easy by scanning all the acquired analog waveforms and comparing them with the geometric shapes on the display. By discarding the acquired waveforms which do not meet the graphical definition, Visual Triggering extends the oscilloscope’s trigger capabilities beyond the traditional hardware trigger system.
DPO71604SX, DPO72304SX, DPO73304SX, DPS75004SX, DPS75904SX, DPS77004SX, MSO72304DX, MSO72504DX, MSO73304DX, DPO72304DX, DPO72504DX, and DPO73304DX.
Active probes | Description |
---|---|
P7720 | 20 GHz TriMode probe with TekFlex connector technology |
P7716 | 16 GHz TriMode probe with TekFlex connector technology |
Probe tips | Description |
---|---|
P77STFLXA/P77STCABL | Active, Solder-in Tip with TekFlex connector technology, probe tips to probe directly on the motherboard/vias or interposers with 0 Ω resistor. |
P77STFLXB/P77STLRCB | Active, Solder-in Tip with TekFlex connector technology, probe tips to probe on the SI Interposer with 100 Ω resistor (Nexus XH Series Interposer). |
SI Interposer | EdgeProbeTM, Direct Attach, and Socketed Interposer are available from Nexus. Order directly from Nexus. Request the s-par files for all individual signals on the interposer instead of getting a generic nominal s-par model.
Refer the Nexus's page for more information:http://www.nexustechnology.com/products/memory-interposers/lpddr5-mobile-memory-interposers/ |
